Yes. Foundation design is a core part of structural engineering services. Engineers size footings, slabs, piers and deep foundations so a structure's weight transfers safely into the ground. They rely on soil information, often from a geotechnical investigation, to make those decisions.
Foundations are out of sight, but they decide whether everything above stays level and safe. Here's what the design involves and how it fits into a project.
What Does Foundation Design Involve?
The engineer determines the loads from the structure, then checks how the soil will carry them. They size footings so pressure on the ground stays within safe limits, and they design reinforcement to handle bending and shear.
They also consider settlement, sliding, uplift and groundwater. A foundation that is strong enough but settles unevenly can still cause cracking and misalignment.
Common Foundation Types
- Spread footings under columns and walls
- Slab on grade foundations
- Basement and stem walls
- Piers and drilled shafts
- Driven or bored piles
How Does Soil Influence the Design?
Heavily. Firm, well draining soil may support simple shallow footings. Soft, loose or expansive soil may need wider footings, soil improvement or deep foundations. Groundwater and slopes add further complexity.
That's why soil data matters so much. Designing without it means guessing, and a wrong guess shows up as cracks or settlement later.
Signs Soil May Need Closer Study
- Fill or uneven ground
- Standing water or high groundwater
- Nearby slopes or retaining walls
- Previous settlement in neighboring buildings
When Are Deep Foundations Needed?
When surface soil can't carry the loads, or when heavy loads, slopes or poor soils make shallow footings unreliable. Deep foundations transfer loads to stronger layers below.
Seiscore, a San Francisco shoring and structural engineering construction company, lists bored piles and pile driving among its services. These are the kinds of methods used when deeper support is required, and its drilling capability is part of what it says it self performs.
How Do Retaining Walls and Foundations Connect?
They're closely linked. A retaining wall has its own footing, which must resist sliding and overturning while staying within soil capacity. A building near a retaining wall also adds loads that the wall may need to carry.
Seiscore lists cast in place concrete, reinforced soil, soldier beam and segmental retaining walls among its services. Designing wall and foundation together avoids conflicts.
What About Existing Foundations?
Sometimes the work is on existing foundations. Underpinning strengthens or deepens them, often when nearby excavation or added loads threaten stability. Seiscore lists underpinning among its services.
How Do Excavation and Foundation Work Interact?
Building a foundation means digging, and digging can disturb neighbors. Deep or close excavations often need shoring to keep soil in place. The foundation sequence must match the support plan.

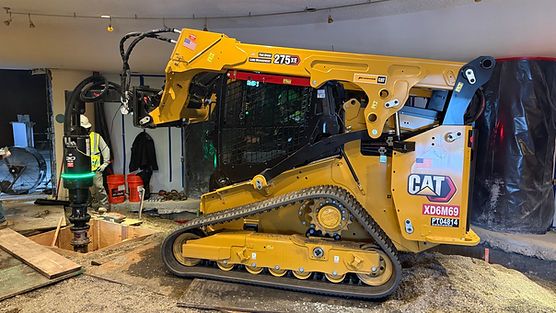

This is where a structural engineering firm with field capability helps. Seiscore says it self performs drilling, excavating, rebar, shotcrete and framing, and describes its focus as quality engineering and means and methods that save clients money and time.
What Deliverables Should You Expect?
Typically, foundation plans, details, notes and calculations. The drawings should show footing sizes, reinforcement, depths and any special requirements, such as drainage or waterproofing. They must be clear enough for contractors to build and for building officials to review.
For structural engineering services, ask what's included before you commit. Foundation design may be part of a package or a separate scope.
A Practical Scenario
Imagine an owner planning a two story home on a sloped lot with soft soil. The engineer reviews soil data and finds that standard footings could settle. The design shifts to deeper support and a retaining wall with its own footing. Without foundation design, the house might have developed cracks within a few years.
How Can You Avoid Foundation Problems?
Invest in soil information, manage drainage and involve engineering early. Keep water away from the foundation with grading and drains. Avoid adding loads without checking capacity.
Also watch for warning signs after construction, such as cracks, sticking doors or sloping floors. Early attention usually means simpler fixes.
Conclusion
Foundation design is a standard part of structural engineering services. It depends on loads, soil, groundwater and construction method.
Get good soil data, coordinate with excavation and retaining wall design and ask for clear drawings. A well designed foundation protects everything above it.
